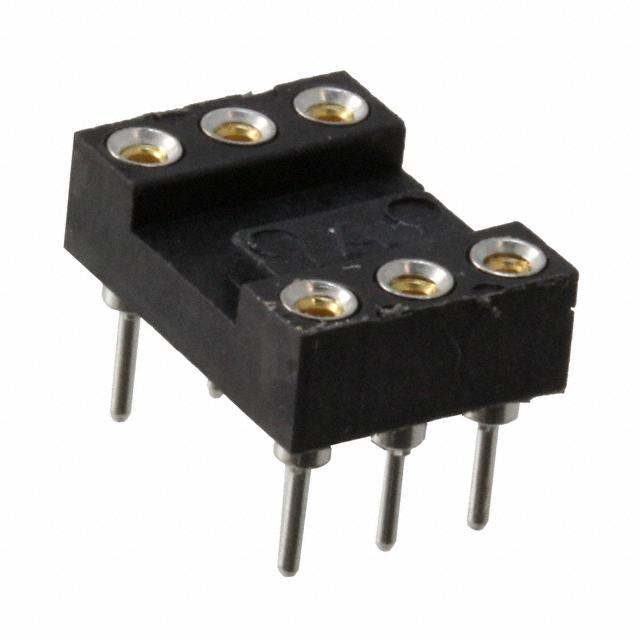

506-AG11D-ESL-LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 506-AG11D-ESL-LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 506-AG11D-ESL-LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 506-AG11D-ESL-LF |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN IC DIP SOCKET 6POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.662 | $0.599 | $0.563 | $0.538 | $0.514 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.465 | $0.428 | $0.367 | $0.343 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 506-AG11D-ESL-LF | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 6POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65448 pcs | Data sheet | 1571551 Drawing |
| Category | Connectors, Interconnects | Type | DIP, 0.3" (7.62mm) Row Spacing |
| Termination Post Length | 0.125" (3.18mm) | Termination | Solder |
| Series | 500 | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 2-1571551-1 2-1571551-1-ND 215715511 A105216 |
Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 6 (2 x 3) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Features | Closed Frame |
| Contact Resistance | 10 mOhm | Contact Material - Post | Nickel |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold |
