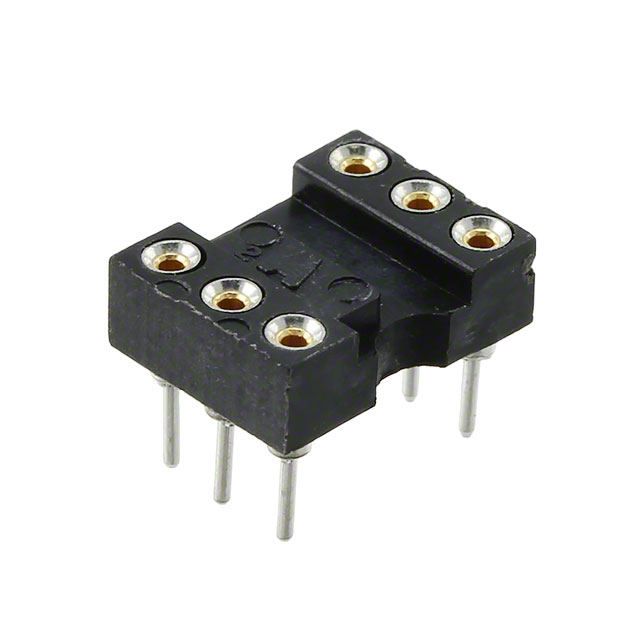

506-AG11D-ES
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 506-AG11D-ES with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 506-AG11D-ES with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 506-AG11D-ES |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN IC DIP SOCKET 6POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | 1600 pcs | ||||
|---|---|---|---|---|---|
| $0.405 | |||||
- Product parameter
Product parameter
| Part Number | 506-AG11D-ES | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 6POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 81954 pcs | Data sheet | |
| Category | Connectors, Interconnects | Type | DIP, 0.3" (7.62mm) Row Spacing |
| Termination Post Length | 0.125" (3.18mm) | Termination | Solder |
| Series | 500 | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 1437535-7 A108179 |
Operating Temperature | -55°C ~ 105°C |
| Number of Positions or Pins (Grid) | 6 (2 x 3) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Housing Material | Polyester | Features | Closed Frame |
| Current Rating | 3A | Contact Resistance | 10 mOhm |
| Contact Material - Post | Copper Alloy | Contact Material - Mating | Copper Alloy |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 25.0µin (0.63µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
