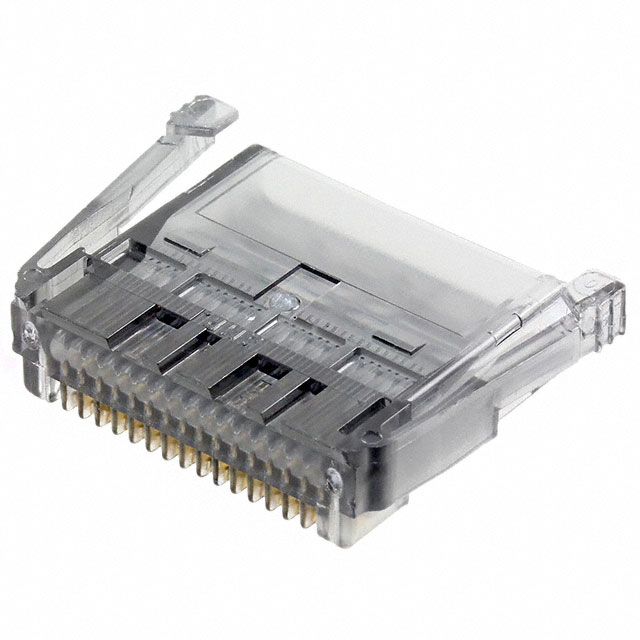

5-520424-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-520424-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-520424-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-520424-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PLUG 16POS SDL 24-26AWG RND |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.485 | $3.333 | $3.03 | $2.879 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.803 | $2.50 | $2.348 | $2.076 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-520424-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PLUG 16POS SDL 24-26AWG RND | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 15163 pcs | Data sheet | SDL Plugs, Receptacles Instr Sheet520424 |
| Category | Connectors, Interconnects | Wire Gauge | 24 AWG |
| Voltage Rating | 30V | Termination | Crimp |
| Shielding | Unshielded | Shield Material | - |
| Series | 50 | Ratings | - |
| Packaging | Bulk | Number of Positions/Contacts | 16 Positions |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Length | 0.855" (21.72mm) | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polycarbonate (PC) |
| Features | Keyed | Detailed Description | SDL, Plug Modular Connector 16 Positions Position Unshielded Crimp |
| Current Rating | 1.5A | Contact Material | Copper Alloy |
| Contact Finish Thickness | 50.0µin (1.27µm) | Contact Finish | Gold |
| Connector Type | SDL, Plug | Color | Clear, Gray |
| Cable Type | Round Cable, Stranded Wires |
