5-520424-1

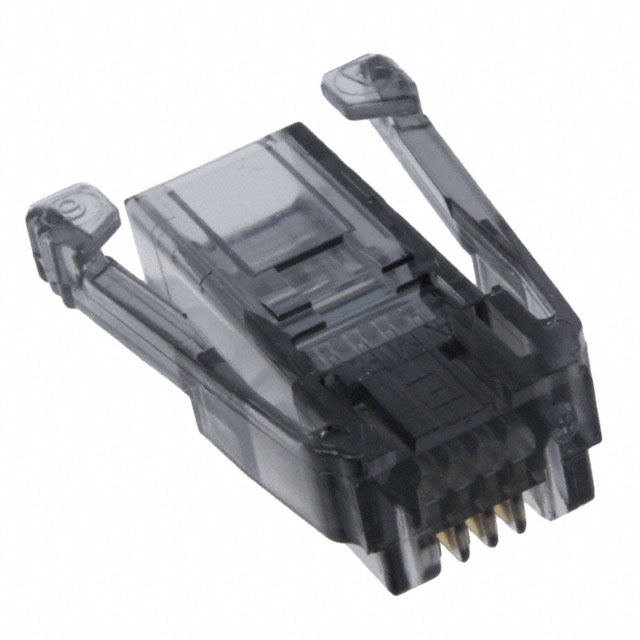

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-520424-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-520424-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-520424-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PLUG 4POS SDL 24-26AWG RND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.796 | $1.724 | $1.58 | $1.508 | $1.436 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.257 | $1.221 | $1.041 | $0.97 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-520424-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PLUG 4POS SDL 24-26AWG RND | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32609 pcs | Data sheet | SDL Plugs, Receptacles Instr Sheet520424 |
| Category | Connectors, Interconnects | Wire Gauge | 24 AWG |
| Voltage Rating | 30V | Termination | Crimp |
| Shielding | Unshielded | Shield Material | - |
| Series | 50 | Ratings | - |
| Packaging | Bulk | Other Names | 55204241 Q2152093 |
| Number of Positions/Contacts | 4 Positions | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Length | 0.855" (21.72mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polycarbonate (PC) | Features | Keyed |
| Detailed Description | SDL, Plug Modular Connector 4 Positions Position Unshielded Crimp | Current Rating | 1.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Finish | Gold | Connector Type | SDL, Plug |
| Color | Clear, Gray | Cable Type | Round Cable, Stranded Wires |
