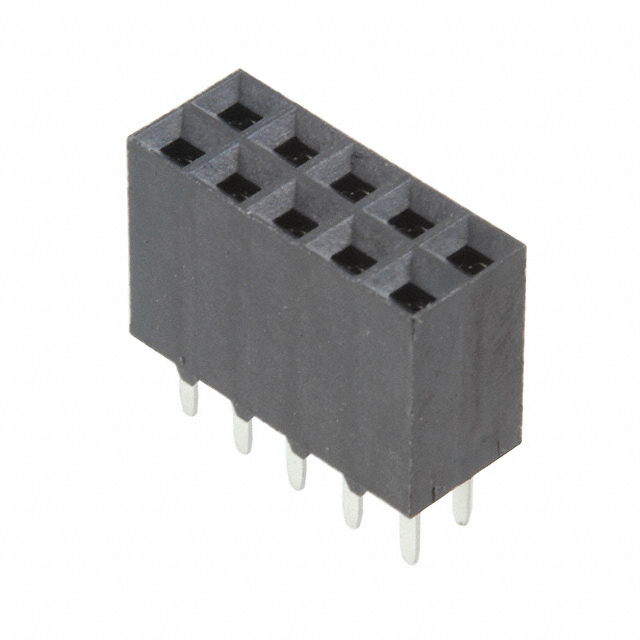

5-147424-5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-147424-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-147424-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-147424-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 10 MODII VRT DR CE .100 X .100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 45 pcs | 135 pcs | 540 pcs | |
|---|---|---|---|---|---|
| $0.664 | $0.566 | $0.517 | $0.43 | ||
| 1035 pcs | 5040 pcs | 10035 pcs | |||
| $0.369 | $0.327 | $0.32 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-147424-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 10 MODII VRT DR CE .100 X .100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74604 pcs | Data sheet | 147424 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | AMPMODU Mod IV | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 5-147424-5-ND A115299 |
Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.320" (8.13mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 10 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.115" (2.92mm) | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
