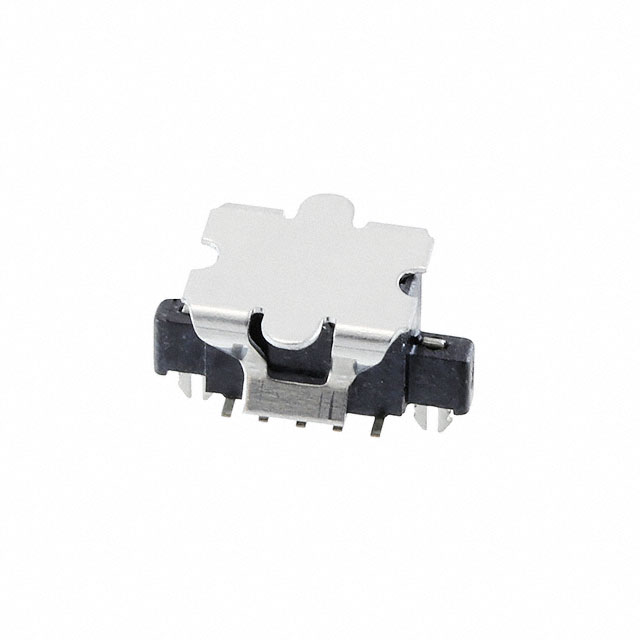

5-147384-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-147384-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-147384-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-147384-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT 10POS VERT .050 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.701 | $1.633 | $1.361 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-147384-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT 10POS VERT .050 SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22199 pcs | Data sheet | 147384 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | AMPMODU 50/50 Grid | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Cut Tape (CT) |
| Other Names | A118911CT | Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 6.35mm, 8.13mm, 9.91mm | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.187" (4.75mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock, Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | 10 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold | Current Rating | 0.5A per Contact |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
