415504-4

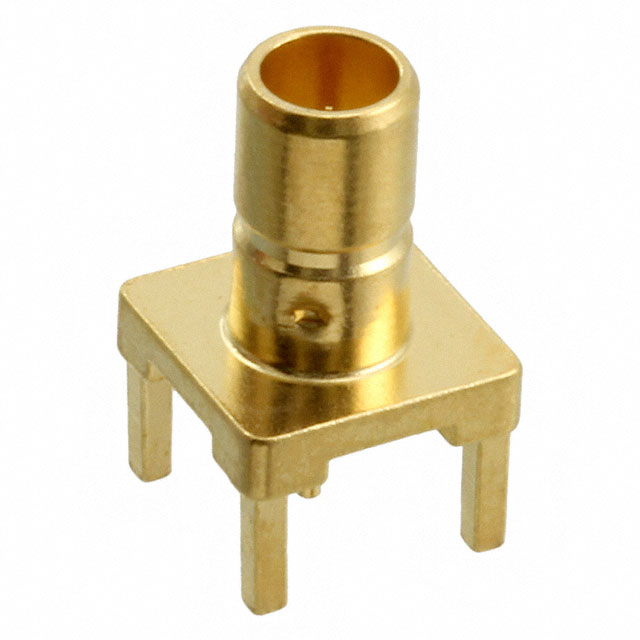

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 415504-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 415504-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 415504-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN MINI SMB JACK STR 75OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.985 | $0.945 | $0.867 | $0.827 | $0.788 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.689 | $0.67 | $0.571 | $0.532 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 415504-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN MINI SMB JACK STR 75OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59581 pcs | Data sheet | 415504 |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 415504-4-ND A113657 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Through Hole | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | 75 Ohm | Housing Color | Gold |
| Frequency - Max | 3GHz | Features | - |
| Fastening Type | Snap-On | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | SMB, Mini Connector Jack, Male Pin 75 Ohm Through Hole Solder | Contact Termination | Solder |
| Connector Type | Jack, Male Pin | Connector Style | SMB, Mini |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Cable Group | - | Body Material | Brass |
| Body Finish | Gold |
