415504-3

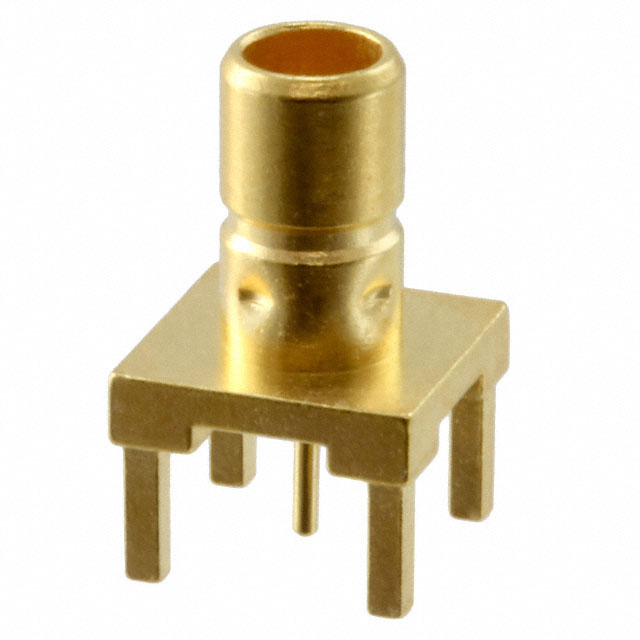

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 415504-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 415504-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 415504-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN MINI SMB JACK STR 75OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.973 | $1.893 | $1.736 | $1.657 | $1.578 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.381 | $1.341 | $1.144 | $1.065 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 415504-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN MINI SMB JACK STR 75OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29966 pcs | Data sheet | 415504 |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 415504-3-ND A113656 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Through Hole | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 75 Ohm |
| Housing Color | Gold | Frequency - Max | 3GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMB, Mini Connector Jack, Male Pin 75 Ohm Through Hole Solder |
| Contact Termination | Solder | Connector Type | Jack, Male Pin |
| Connector Style | SMB, Mini | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
