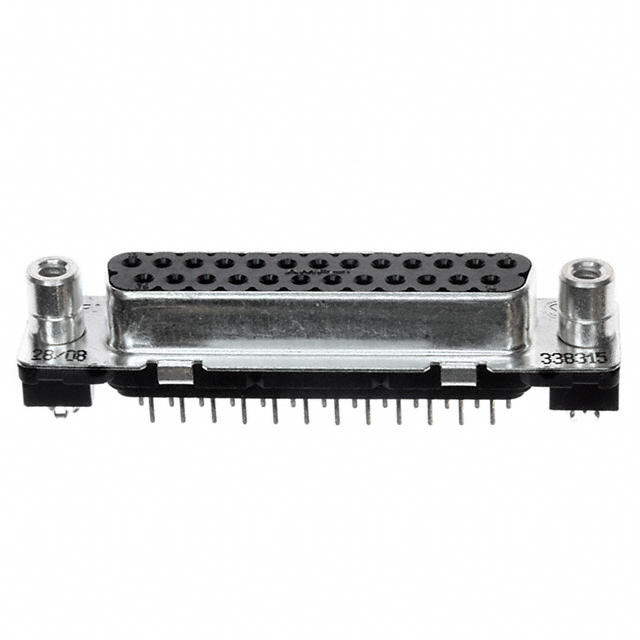

3-338315-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-338315-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-338315-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-338315-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB RCPT 25POS VERT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $4.003 | $3.828 | $3.48 | $3.306 | ||
| 120 pcs | 270 pcs | 510 pcs | 1020 pcs | ||
| $3.219 | $2.871 | $2.697 | $2.384 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-338315-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB RCPT 25POS VERT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14736 pcs | Data sheet | x-338315-x Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Tin Plated |
| Series | AMPLIMITE HDP-20 | Packaging | Tray |
| Other Names | 33383152 A35174 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyester, Glass Filled | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Board Lock | Detailed Description | 25 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 6A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
