3-338313-2

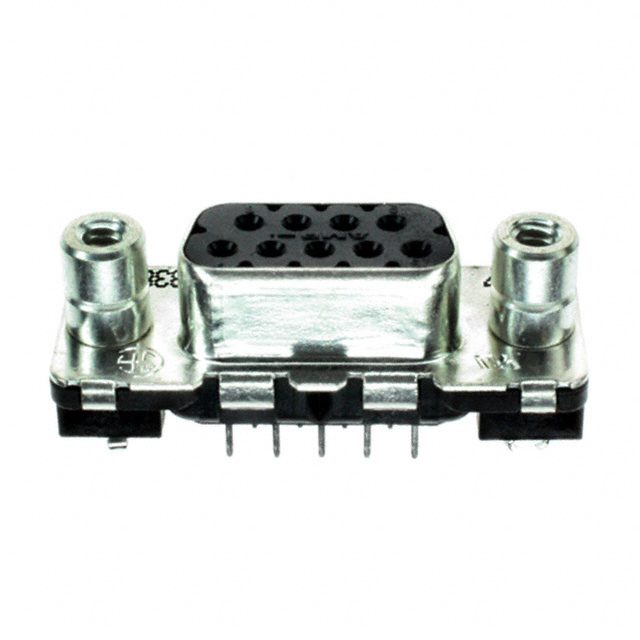

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-338313-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-338313-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-338313-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB RCPT 9POS VERT SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 55 pcs | 110 pcs |
|---|---|---|---|---|---|
| $2.494 | $2.389 | $2.181 | $2.078 | $1.974 | |
| 275 pcs | 550 pcs | 1045 pcs | 2530 pcs | ||
| $1.766 | $1.662 | $1.454 | $1.382 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-338313-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB RCPT 9POS VERT SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24146 pcs | Data sheet | 338313 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Tin Plated |
| Series | AMPLIMITE HDP-20 | Packaging | Tray |
| Other Names | 33383132 A35172 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyester, Glass Filled | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Board Lock | Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 6A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
