3-1534799-1

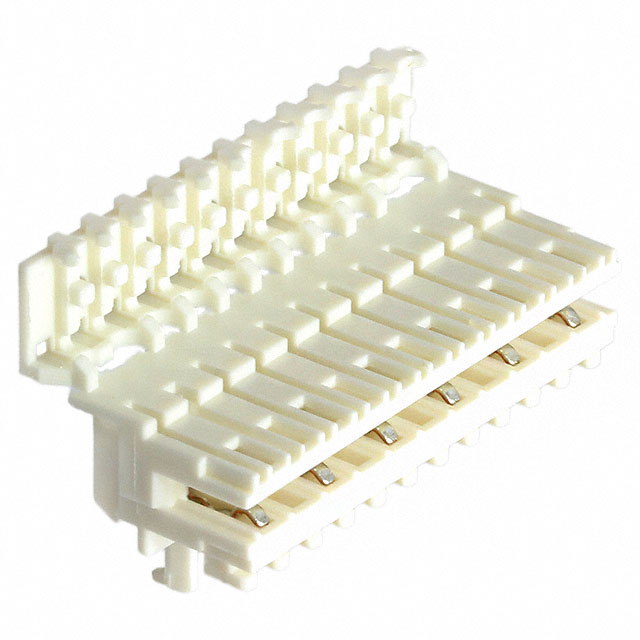

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-1534799-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-1534799-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-1534799-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | AMP DUOPLUG MK2 CONNECTOR 11P SE |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.304 | $0.268 | $0.252 | $0.242 | $0.231 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.21 | $0.189 | $0.168 | $0.152 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-1534799-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | AMP DUOPLUG MK2 CONNECTOR 11P SE | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 144164 pcs | Data sheet | 1534799 Drawing |
| Category | Connectors, Interconnects | Wire Type | Discrete |
| Wire Gauge | 22-24 AWG | Series | DuoPlug |
| Row Spacing | - | Pitch | 0.098" (2.50mm) |
| Packaging | Bulk | Other Names | A117575 |
| Number of Rows | 1 | Number of Positions | 11 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant | Features | Mates to PCB |
| Fastening Type | - | Detailed Description | 11 Position Rectangular Receptacle Connector IDC Tin 22-24 AWG |
| Contact Type | Female Blade Socket | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector Type | Receptacle |
| Color | Natural | Cable Termination | IDC |
