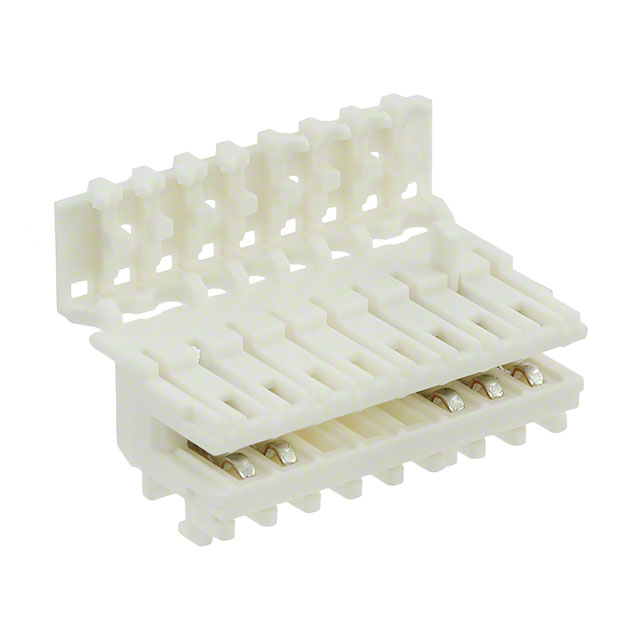

3-1534798-8
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-1534798-8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-1534798-8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-1534798-8 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | DUOPLUG MK II CONNECTOR3-20P SEL |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 13552 pcs | ||||
|---|---|---|---|---|---|
| $0.113 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-1534798-8 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DUOPLUG MK II CONNECTOR3-20P SEL | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 209232 pcs | Data sheet | 1534798 Drawing |
| Category | Connectors, Interconnects | Wire Type | Discrete |
| Wire Gauge | 22-24 AWG | Series | Mark II |
| Row Spacing | - | Pitch | 0.098" (2.50mm) |
| Packaging | Bulk | Other Names | A117573 |
| Number of Rows | 1 | Number of Positions | 8 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant | Features | Mates to PCB |
| Fastening Type | - | Detailed Description | 8 Position Rectangular Receptacle Connector IDC Tin 22-24 AWG |
| Contact Type | Female Blade Socket | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector Type | Receptacle |
| Color | Natural | Cable Termination | IDC |
