228216-1

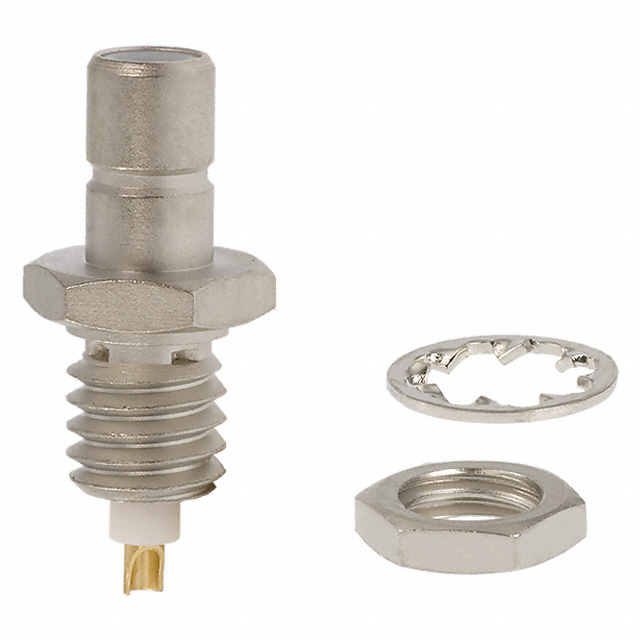

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 228216-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 228216-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 228216-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SMB RCPT STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.131 | $4.664 | $4.547 | $4.198 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.964 | $3.615 | $3.381 | $3.101 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 228216-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SMB RCPT STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12427 pcs | Data sheet | 228216 |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 228216-1-ND 2282161 A24695 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Rear Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.3dB | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 4GHz |
| Features | Extended Insulation | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMB Connector Receptacle, Male Pin 50 Ohm Panel Mount Solder Cup |
| Contact Termination | Solder Cup | Connector Type | Receptacle, Male Pin |
| Connector Style | SMB | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
