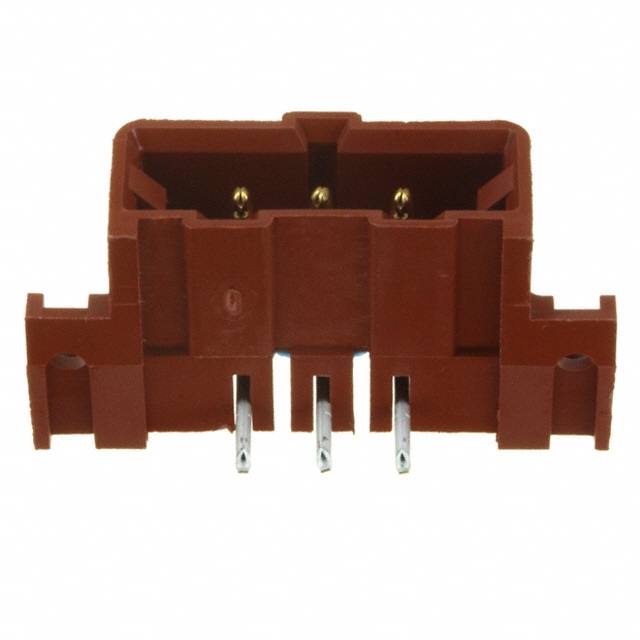

207541-7
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 207541-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 207541-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 207541-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HDR PIN 3 POS METRIMATE AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 14 pcs | 112 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $2.547 | $2.442 | $2.017 | $1.698 | $1.486 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 207541-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HDR PIN 3 POS METRIMATE AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24980 pcs | Data sheet | 207541 |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Metrimate |
| Row Spacing - Mating | - | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 207541-7-ND A123211 |
Operating Temperature | -55°C ~ 130°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.500" (12.70mm) | Insulation Color | Red |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.197" (5.00mm) |
| Current Rating | 7.5A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.192" (4.88mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial |
