207532-9

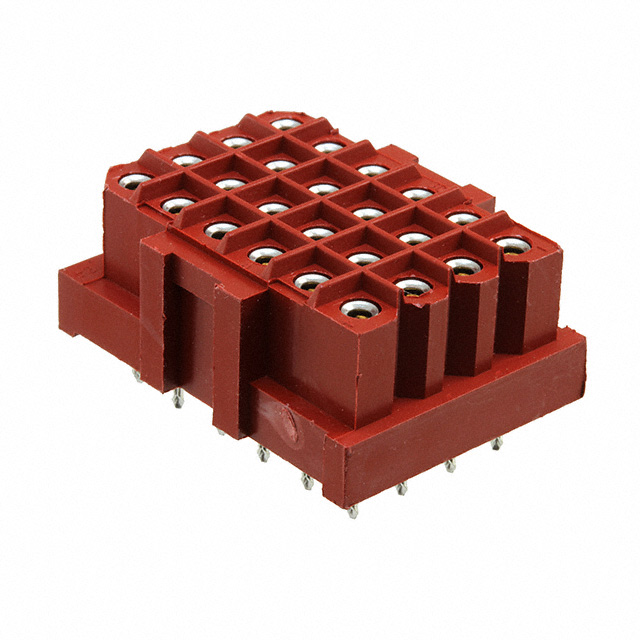

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 207532-9 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 207532-9 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 207532-9 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SKT HDR ASSY,24 POSN,METRIMATE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 320 pcs | ||||
|---|---|---|---|---|---|
| $4.118 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 207532-9 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SKT HDR ASSY,24 POSN,METRIMATE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7219 pcs | Data sheet | 207532 |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | Metrimate | Row Spacing - Mating | 0.197" (5.00mm) |
| Pitch - Mating | 0.197" (5.00mm) | Packaging | Tray |
| Operating Temperature | -55°C ~ 130°C | Number of Rows | 4 |
| Number of Positions Loaded | All | Number of Positions | 24 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.565" (14.35mm) |
| Insulation Color | Red | Ingress Protection | - |
| Features | Mounting Flange | Fastening Type | Latch Holder |
| Detailed Description | 24 Position Header Connector 0.197" (5.00mm) Through Hole Tin | Current Rating | 7.5A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.181" (4.60mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
