204525-1

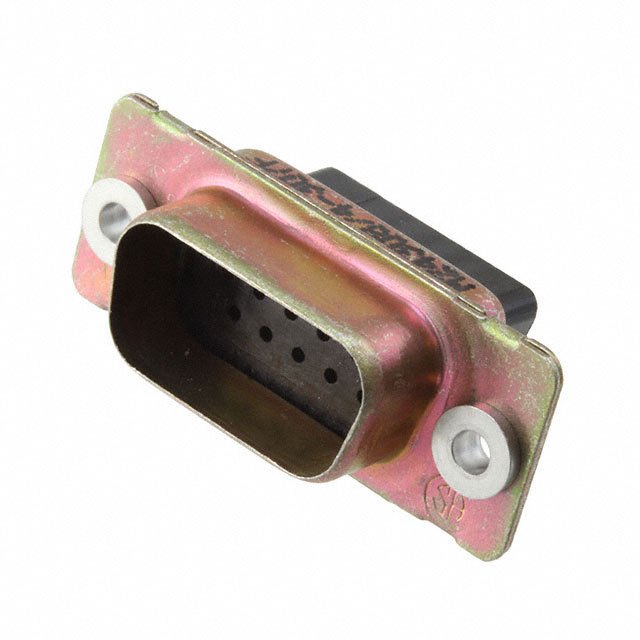

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 204525-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 204525-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 204525-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB PLUG HD 15P SER 90 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 204525-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB PLUG HD 15P SER 90 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5364 pcs | Data sheet | 204525 Drawing |
| Category | Connectors, Interconnects | Shell Size, Connector Layout | 1 (DE, E) High Density |
| Shell Material, Finish | Steel, Cadmium Plated | Shell Finish Thickness | - |
| Series | Military, MIL-DTL-24308, AMPLIMITE 90 | Packaging | Bulk |
| Other Names | 1122-1190 1122-1190-MIL 204525-1-ND M24308/4-329F M24308/4-329F-MIL M24308/4-329F-ND |
Operating Temperature | - |
| Number of Rows | 3 | Number of Positions | 15 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Flange Feature | Housing/Shell (Unthreaded) | Features | - |
| Dielectric Material | - | Detailed Description | Plug for Male Contacts Housing D-Sub, High Density Connector 15 Position |
| Contact Type | Signal | Connector Type | Plug for Male Contacts |
| Connector Style | D-Sub, High Density | Color | - |
