204521-2

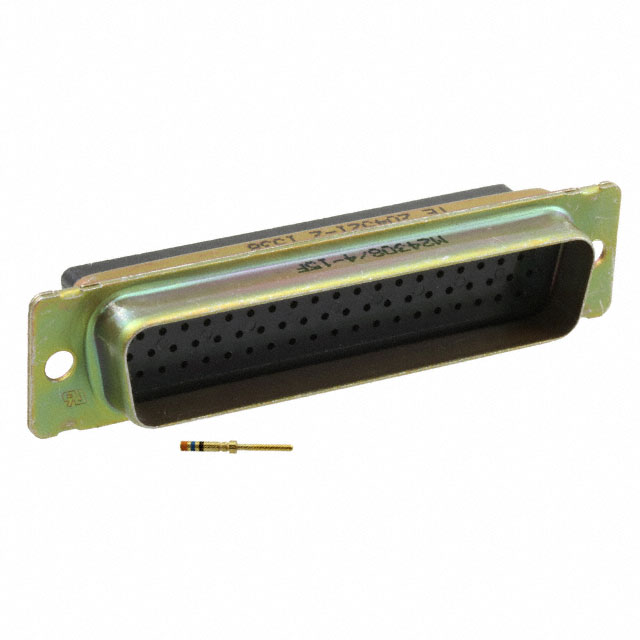

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 204521-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 204521-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 204521-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN DSUB HD PLUG 78POS PNL MNT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $27.801 | $26.167 | $25.349 | $23.713 | $22.405 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 204521-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN DSUB HD PLUG 78POS PNL MNT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1564 pcs | Data sheet | HD-22 Series Instr Sheet204521 |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Crimp |
| Shell Size, Connector Layout | 5 (DD, D) High Density | Shell Material, Finish | Steel, Cadmium Plated |
| Series | Military, MIL-DTL-24308, AMPLIMITE 90; HD-22 | Packaging | Bulk |
| Other Names | 1122-1256 1122-1256-MIL 204521-2-MIL 204521-2-ND M24308/4-15F M24308/4-15F-MIL M24308/4-15F-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 4 | Number of Positions | 78 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Housing Material | - | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 78 Position D-Sub, High Density Plug, Male Pins Connector |
| Current Rating | 7.5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, High Density |
| Color | - | Backset Spacing | - |
