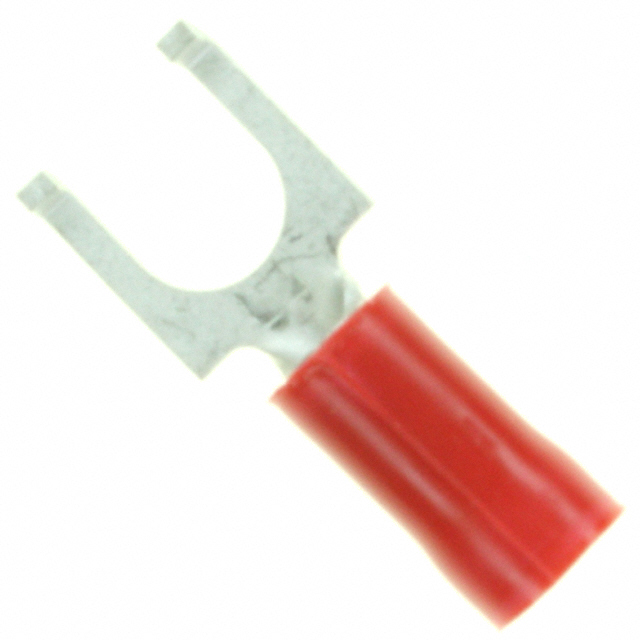

2-328516-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-328516-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-328516-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-328516-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 16-22AWG #10 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.232 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-328516-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 16-22AWG #10 RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83314 pcs | Data sheet | 328516 |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.296" (7.52mm) | Tongue Inside Opening | 0.197" (5.00mm) |
| Termination | Crimp | Terminal Type | Flanged |
| Stud/Tab Size | 10 Stud | Series | Plasti-Grip |
| Packaging | Tape & Reel (TR) | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Manufacturer Standard Lead Time | 14 Weeks | Length - Termination | 0.416" (10.57mm) |
| Length - Ring Center to Termination | 0.203" (5.16mm) | Length - Overall | 0.780" (19.81mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | 0.105" ~ 0.140" (2.67mm ~ 3.56mm) |
| Insulation | Insulated | Features | Serrated Termination |
| Detailed Description | Red 10 Stud Spade Terminal Connector Crimp 16-22 AWG | Contact Material | Copper |
| Contact Finish | Tin | Color | Red |
