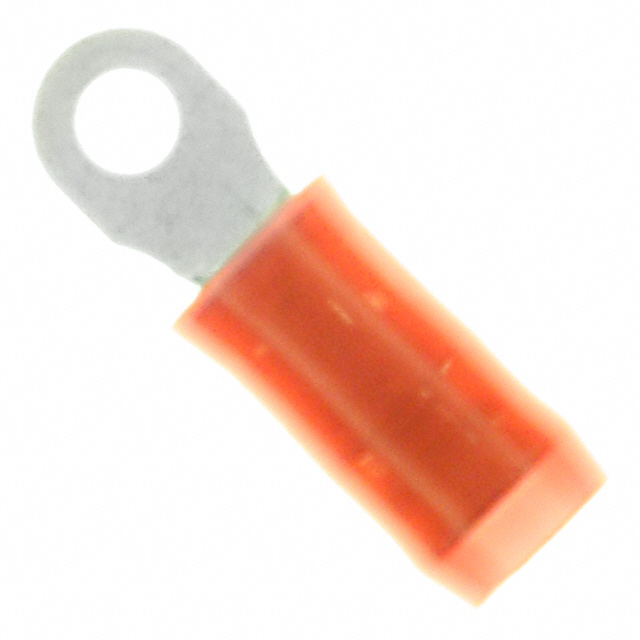

2-324158-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-324158-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-324158-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-324158-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 16-22AWG #2 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | 10000 pcs | 15000 pcs | ||
|---|---|---|---|---|---|
| $0.152 | $0.144 | $0.141 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-324158-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 16-22AWG #2 CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 155957 pcs | Data sheet | 324158 |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.182" (4.62mm) | Thickness | 0.031" (0.79mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 2 Stud | Series | PIDG |
| Packaging | Tape & Reel (TR) | Other Names | 2-324158-1-ND A135536TR |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 17 Weeks |
| Length - Overall | 0.665" (16.89mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.080" ~ 0.125" (2.03mm ~ 3.18mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Ring Terminal Connector 2 Stud Circular 16-22 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Red |
