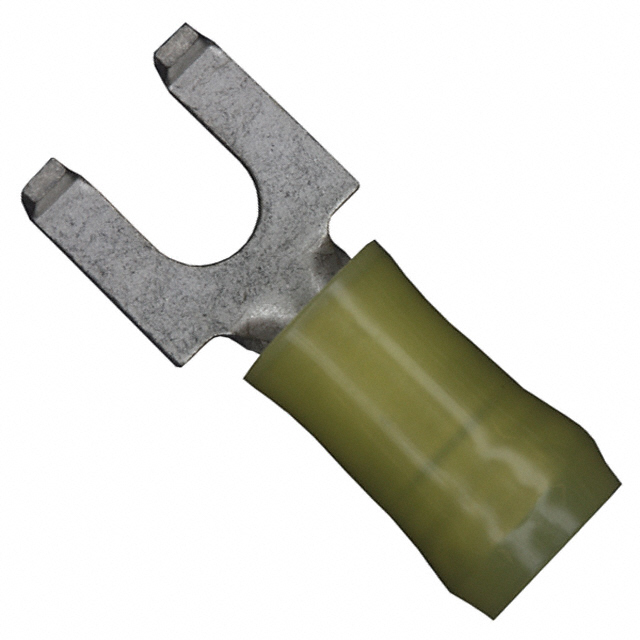

2-324015-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-324015-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-324015-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-324015-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 10-12AWG #10 YEL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | 5000 pcs | 12500 pcs | ||
|---|---|---|---|---|---|
| $0.145 | $0.14 | $0.13 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-324015-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 10-12AWG #10 YEL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 170539 pcs | Data sheet | 324015 |
| Category | Connectors, Interconnects | Wire Gauge | 10-12 AWG |
| Width - Outer Edges | 0.416" (10.57mm) | Tongue Inside Opening | 0.197" (5.00mm) |
| Termination | Crimp | Terminal Type | Flanged |
| Stud/Tab Size | 10 Stud | Series | PIDG |
| Packaging | Tape & Reel (TR) | Other Names | 2-324015-1-ND A0901TR A28155 A28155-ND |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 17 Weeks |
| Length - Termination | 0.591" (15.01mm) | Length - Ring Center to Termination | 0.250" (6.35mm) |
| Length - Overall | 1.056" (26.82mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.150" ~ 0.250" (3.81mm ~ 6.35mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Yellow 10 Stud Spade Terminal Connector Crimp 10-12 AWG |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Yellow |
