2-320569-5

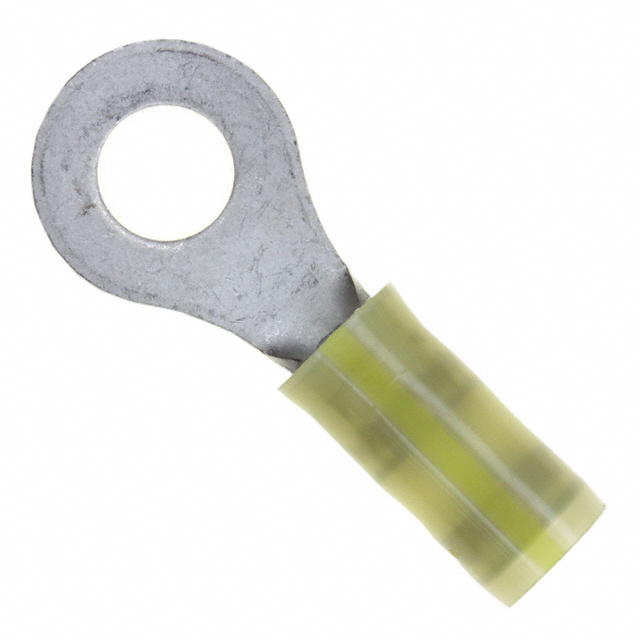

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-320569-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-320569-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-320569-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 12AWG #1/4 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.496 | $0.436 | $0.41 | $0.393 | $0.376 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.342 | $0.308 | $0.274 | $0.248 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-320569-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 12AWG #1/4 CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80735 pcs | Data sheet | 320569 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 12 AWG |
| Width - Outer Edges | 0.531" (13.49mm) | Thickness | 0.040" (1.02mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 1/4 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 2-320569-5-ND A27515 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 16 Weeks |
| Length - Overall | 1.392" (35.36mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.095" ~ 0.200" (2.41mm ~ 5.08mm) | Insulation | Insulated |
| Features | Insulation Restriction, Serrated Termination | Detailed Description | Ring Terminal Connector 1/4 Stud Circular 12 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Yellow, Yellow Stripe |
