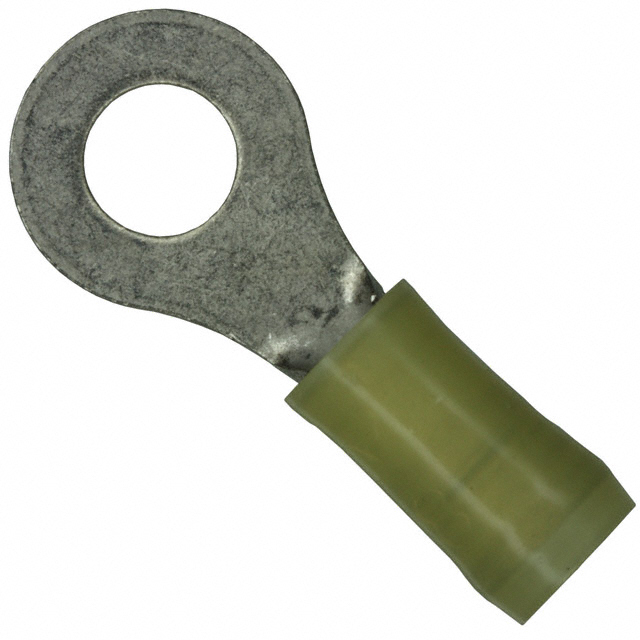

2-320569-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-320569-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-320569-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-320569-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 10-12AWG #1/4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | 5000 pcs | 12500 pcs | 25000 pcs | |
|---|---|---|---|---|---|
| $0.076 | $0.074 | $0.068 | $0.066 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-320569-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 10-12AWG #1/4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 295061 pcs | Data sheet | 320569 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 10-12 AWG |
| Width - Outer Edges | 0.531" (13.49mm) | Thickness | 0.040" (1.02mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 1/4 Stud | Series | PIDG |
| Packaging | Tape & Reel (TR) | Other Names | 2-320569-3-ND 23205693 A27288TR A28140 A28140-ND |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 1.322" (33.58mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.150" ~ 0.230" (3.81mm ~ 5.84mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Ring Terminal Connector 1/4 Stud Circular 10-12 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Yellow |
