1892302-1

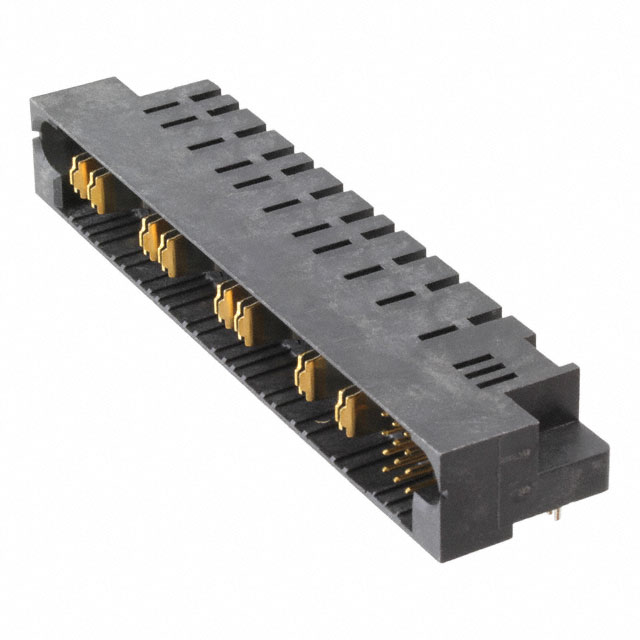

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1892302-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1892302-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1892302-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | MBXL R/A HDR B11P+12S |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 22 pcs | 44 pcs | 66 pcs | |
|---|---|---|---|---|---|
| $4.233 | $3.848 | $3.751 | $3.463 | ||
| 110 pcs | 264 pcs | 506 pcs | 1012 pcs | ||
| $3.27 | $2.982 | $2.789 | $2.559 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1892302-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | MBXL R/A HDR B11P+12S | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13262 pcs | Data sheet | 1892302 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Series | MULTI-BEAM XL |
| Pitch | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | A107799 | Operating Temperature | -20°C ~ 105°C |
| Number of Rows | 4 | Number of Positions Loaded | 20 |
| Number of Positions | 23 | Number of Columns | - |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Board Lock, Mating Guide |
| Current Rating | - | Contact Layout, Typical | 12 Signal, 11 Power |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Header, Male Pins and Blades |
| Connector Style | Multi-Beam | Color | - |
