1892301-1

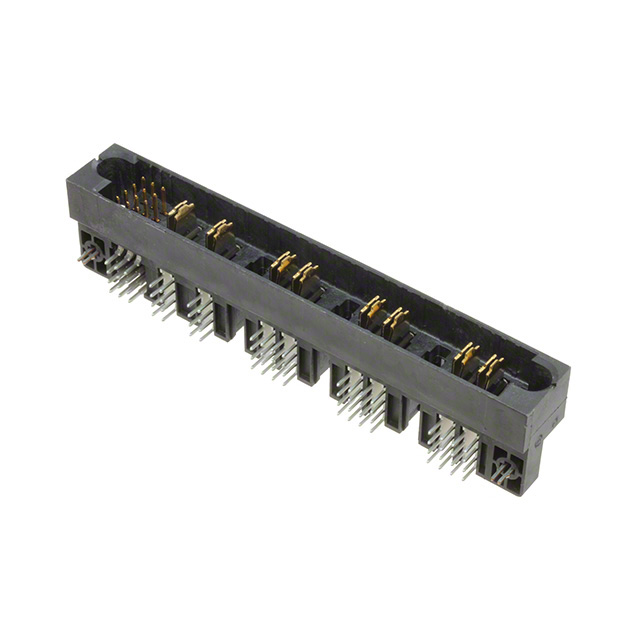

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1892301-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1892301-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1892301-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | MBXL R/A HDR DB 12S+11P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 22 pcs | 44 pcs | 66 pcs | |
|---|---|---|---|---|---|
| $3.743 | $3.581 | $3.256 | $3.093 | ||
| 110 pcs | 264 pcs | 506 pcs | 1012 pcs | ||
| $3.011 | $2.686 | $2.523 | $2.23 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1892301-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | MBXL R/A HDR DB 12S+11P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13975 pcs | Data sheet | 1892301 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Series | MULTI-BEAM XL |
| Pitch | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 1892301-1-ND A135347 |
Operating Temperature | - |
| Number of Rows | 4 | Number of Positions Loaded | 20 |
| Number of Positions | 23 | Number of Columns | - |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Board Lock, Mating Guide |
| Current Rating | - | Contact Layout, Typical | 12 Signal, 11 Power |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Header, Male Pins and Blades |
| Connector Style | Multi-Beam | Color | Black |
