1775469-5

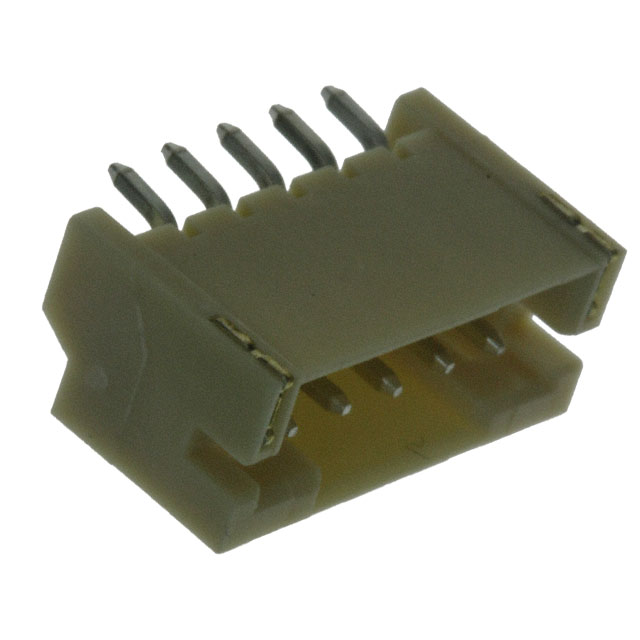

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1775469-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1775469-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1775469-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 5POS 2MM R/A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 600 pcs | 1200 pcs | 1800 pcs | ||
|---|---|---|---|---|---|
| $0.176 | $0.156 | $0.146 | |||
| 3000 pcs | 6000 pcs | 15000 pcs | |||
| $0.142 | $0.137 | $0.127 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1775469-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 5POS 2MM R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 152205 pcs | Data sheet | 1775469 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | High Performance Interconnect (HPI) |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | A100083TR | Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA9T), Nylon 9T | Insulation Height | 0.217" (5.51mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | - |
| Detailed Description | Connector Header Surface Mount, Right Angle 5 position 0.079" (2.00mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | 0.139" (3.53mm) | Contact Finish Thickness - Post | 80.0µin (2.03µm) |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | Automotive, General Purpose, Industrial, Medical |
