1775469-3

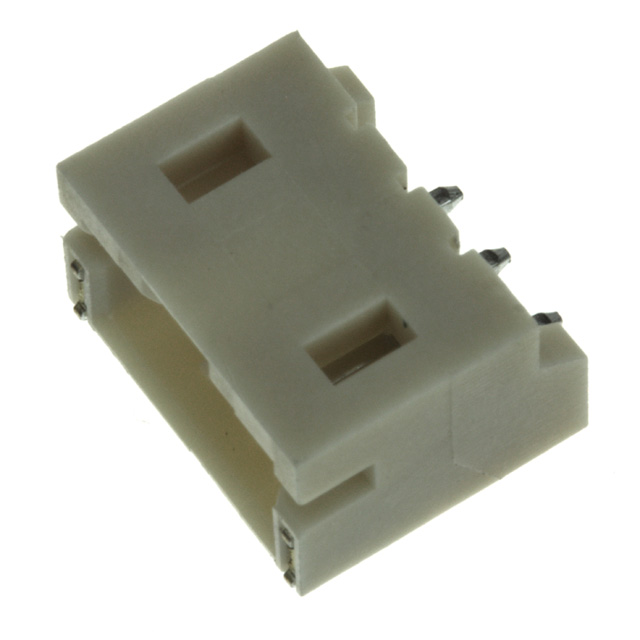

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1775469-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1775469-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1775469-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 3POS 2MM R/A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 600 pcs | 1200 pcs | 1800 pcs | ||
|---|---|---|---|---|---|
| $0.163 | $0.145 | $0.136 | |||
| 3000 pcs | 6000 pcs | 15000 pcs | |||
| $0.132 | $0.127 | $0.118 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1775469-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 3POS 2MM R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 159717 pcs | Data sheet | 1775469 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | High Performance Interconnect (HPI) |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 17754693 A100081TR |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA9T), Nylon 9T |
| Insulation Height | 0.217" (5.51mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | - | Detailed Description | Connector Header Surface Mount, Right Angle 3 position 0.079" (2.00mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.139" (3.53mm) |
| Contact Finish Thickness - Post | 80.0µin (2.03µm) | Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
