1747996-4

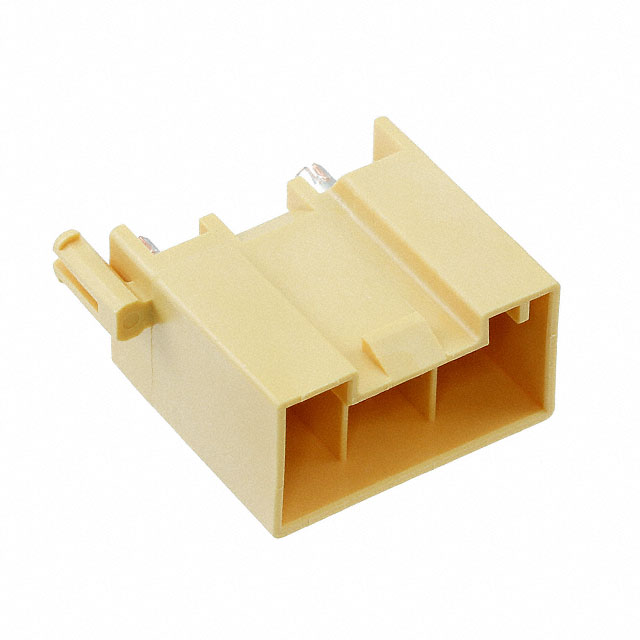

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1747996-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1747996-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1747996-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | GHC EYELET 12.4 2POS HEADER ASSY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.369 | $0.323 | $0.304 | $0.292 | $0.279 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.254 | $0.228 | $0.203 | $0.184 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1747996-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | GHC EYELET 12.4 2POS HEADER ASSY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 113338 pcs | Data sheet | 1747996 |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Grace High Current, GHC |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A125455 | Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.705" (17.91mm) | Insulation Color | Yellow |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Through Hole 2 position |
| Current Rating | Varies by Wire Gauge | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial |
