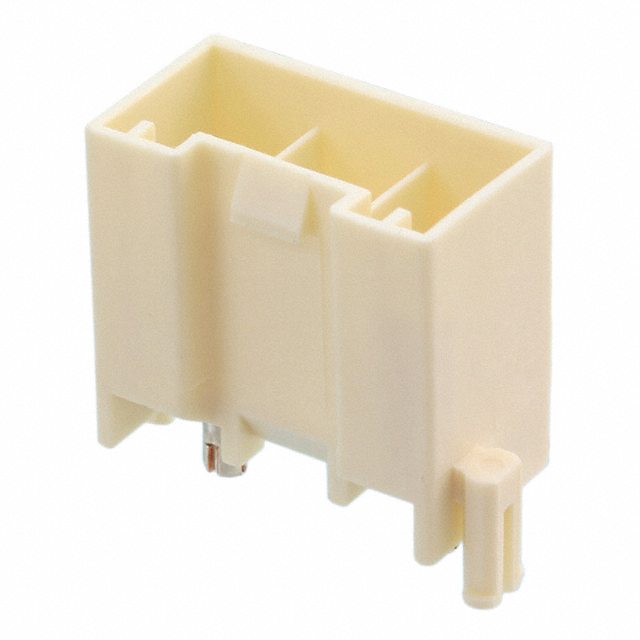

1747996-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1747996-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1747996-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1747996-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 2POS VERT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.306 | $0.269 | $0.232 | $0.19 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.169 | $0.148 | $0.14 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1747996-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 2POS VERT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 159559 pcs | Data sheet | 1747996 |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Grace High Current, GHC |
| Row Spacing - Mating | - | Pitch - Mating | 0.488" (12.40mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | -30°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Insulation Height | 0.705" (17.91mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Latch Lock |
| Detailed Description | Connector Header Through Hole 2 position 0.488" (12.40mm) | Current Rating | Varies by Wire Gauge |
| Contact Type | Tab | Contact Shape | Rectangular |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose, Industrial |
