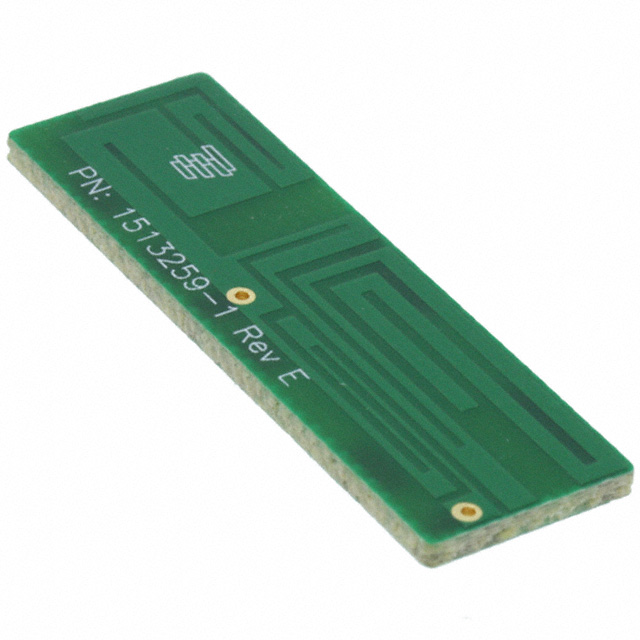

1513259-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1513259-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1513259-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1513259-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RF ANT 850/900MHZ PCB TRACE SLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $1.117 | $1.008 | $0.90 | $0.81 | $0.72 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.63 | $0.522 | $0.486 | $0.468 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1513259-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RF ANT 850/900MHZ PCB TRACE SLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69105 pcs | Data sheet | 1513259-1 Datasheet1513259, 151368x Drawing |
| Category | RF/IF and RFID | VSWR | 3 |
| Termination | Solder | Series | - |
| Return Loss | - | Power - Max | 10W |
| Packaging | Bulk | Other Names | A99513 |
| Number of Bands | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.062" (1.57mm) | Gain | 1dBi |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Frequency Group | UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz) |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | Features | - |
| Detailed Description | 850MHz, 900MHz, 1.8GHz, 1.9GHz CDMA, GSM, LTE, ZigBee™ PCB Trace RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz 1dBi Solder Surface Mount | Applications | CDMA, GSM, LTE, ZigBee™ |
| Antenna Type | PCB Trace |
