1513247-1

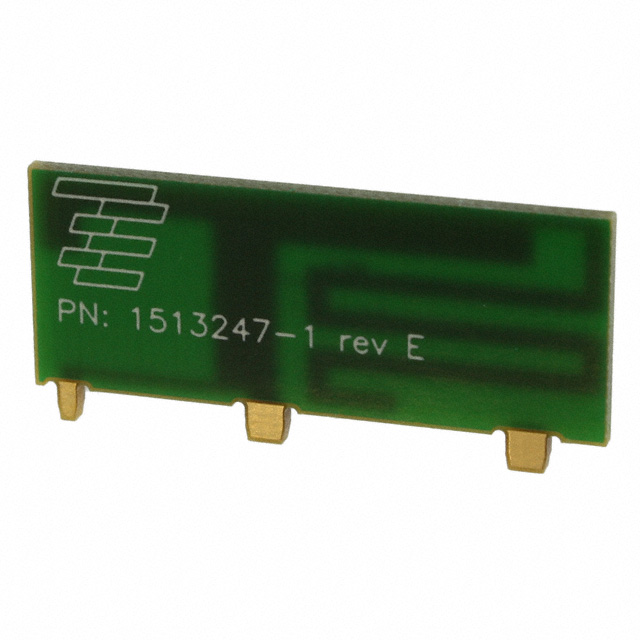

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1513247-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1513247-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1513247-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RF ANT 859MHZ/1.9GHZ PCB TRACE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.792 | $1.602 | $1.441 | $1.313 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.185 | $1.063 | $0.897 | $0.852 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1513247-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RF ANT 859MHZ/1.9GHZ PCB TRACE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 46126 pcs | Data sheet | 1513247 Drawing1513247-1 Datasheet |
| Category | RF/IF and RFID | VSWR | 3 |
| Termination | Solder | Series | - |
| Return Loss | - | Power - Max | 10W |
| Packaging | Bulk | Other Names | 1513247-1-ND A107435 |
| Number of Bands | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.062" (1.57mm) | Gain | 0dBi, 3dBi |
| Frequency Range | 824MHz ~ 894MHz, 1.85GHz ~ 1.99GHz | Frequency Group | UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz) |
| Frequency (Center/Band) | 859MHz, 1.9GHz | Features | - |
| Detailed Description | 859MHz, 1.9GHz PCB Trace RF Antenna 824MHz ~ 894MHz, 1.85GHz ~ 1.99GHz 0dBi, 3dBi Solder Surface Mount | Applications | - |
| Antenna Type | PCB Trace |
