1513164-1

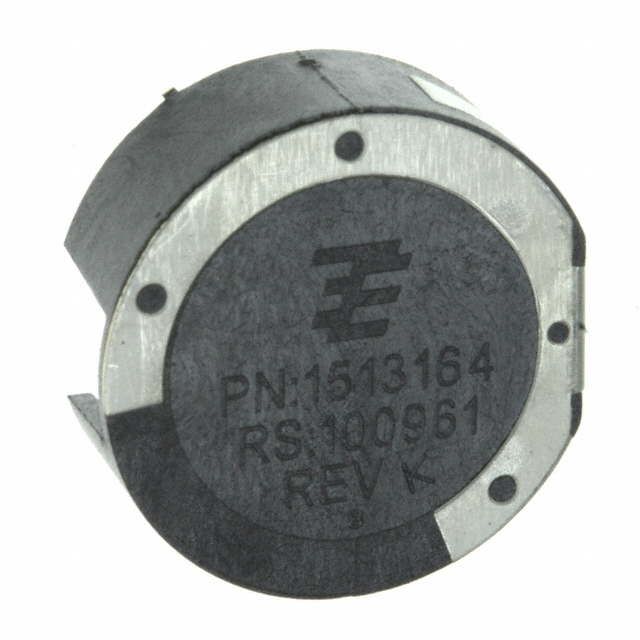

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1513164-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1513164-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1513164-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RF ANT 2.4GHZ/5.5GHZ MOLDED SLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.676 | $0.612 | $0.547 | $0.492 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1513164-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RF ANT 2.4GHZ/5.5GHZ MOLDED SLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76408 pcs | Data sheet | 1513164 Drawing1513164-1 Datasheet |
| Category | RF/IF and RFID | VSWR | 2.5 |
| Termination | Solder | Series | - |
| Return Loss | - | Power - Max | 10W |
| Packaging | Cut Tape (CT) | Other Names | A99514CT |
| Number of Bands | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 23 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.236" (6.00mm) | Gain | 4dBi |
| Frequency Range | 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz | Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) |
| Frequency (Center/Band) | 2.4GHz, 5.5GHz | Features | - |
| Detailed Description | 2.4GHz, 5.5GHz Bluetooth, WLAN, Zigbee™ Molded RF Antenna 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz 4dBi Solder Surface Mount | Applications | Bluetooth, WLAN, Zigbee™ |
| Antenna Type | Molded |
