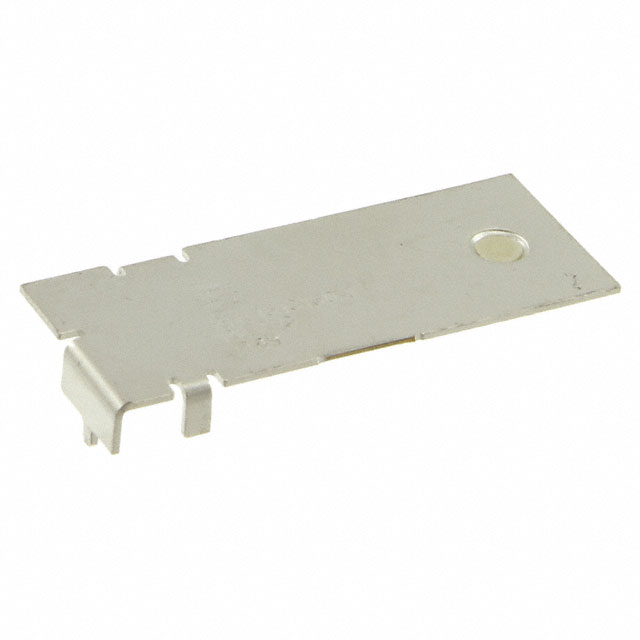

1513150-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1513150-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1513150-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1513150-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RF ANT 2.4GHZ STAMPED MET SLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.633 | $0.571 | $0.51 | $0.459 | $0.408 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.357 | $0.296 | $0.275 | $0.265 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1513150-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RF ANT 2.4GHZ STAMPED MET SLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71580 pcs | Data sheet | 1513150 Drawing |
| Category | RF/IF and RFID | VSWR | 2.5 |
| Termination | Solder | Series | - |
| Return Loss | - | Packaging | Bulk |
| Other Names | 100929 1513150-1-ND A112306 |
Number of Bands | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.118" (2.99mm) |
| Gain | 4.5dB | Frequency Range | 2.4GHz ~ 2.483.5GHz |
| Frequency Group | UHF (2 GHz ~ 3 GHz) | Frequency (Center/Band) | 2.4GHz |
| Features | - | Detailed Description | 2.4GHz Bluetooth, WiMedia™, WLAN, Zigbee™ Stamped Metal RF Antenna 2.4GHz ~ 2.483.5GHz 4.5dB Solder Surface Mount |
| Applications | Bluetooth, WiMedia™, WLAN, Zigbee™ | Antenna Type | Stamped Metal |
