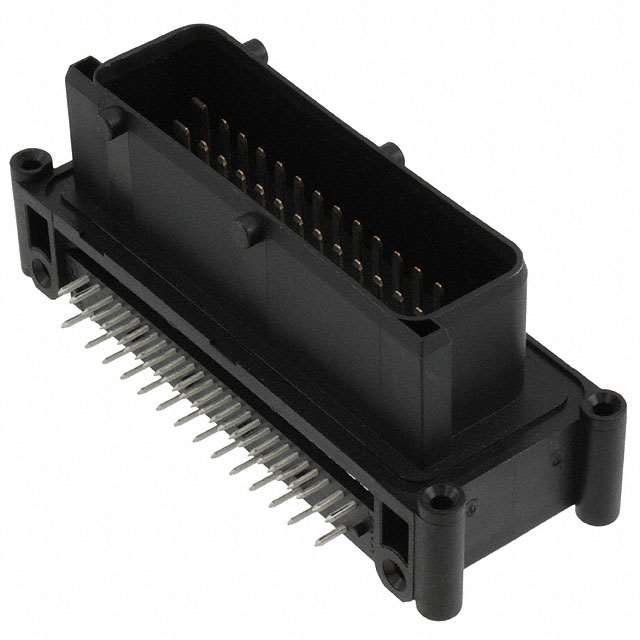

1-967280-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-967280-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-967280-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-967280-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 42POS R/A 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $5.791 | $5.263 | $4.474 | $3.816 | $3.50 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-967280-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 42POS R/A 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8654 pcs | Data sheet | 967280 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Junior Power Timer |
| Row Spacing - Mating | 0.230" (5.84mm) | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 1-967280-1-ND 19672801 A107215 |
Operating Temperature | - |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 42 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 23 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 1.280" (32.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Lever Lock | Detailed Description | Connector Header Through Hole, Right Angle 42 position 0.197" (5.00mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.122" (3.10mm) | Contact Length - Mating | 0.315" (8.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Plug | Applications | Automotive, General Purpose |
