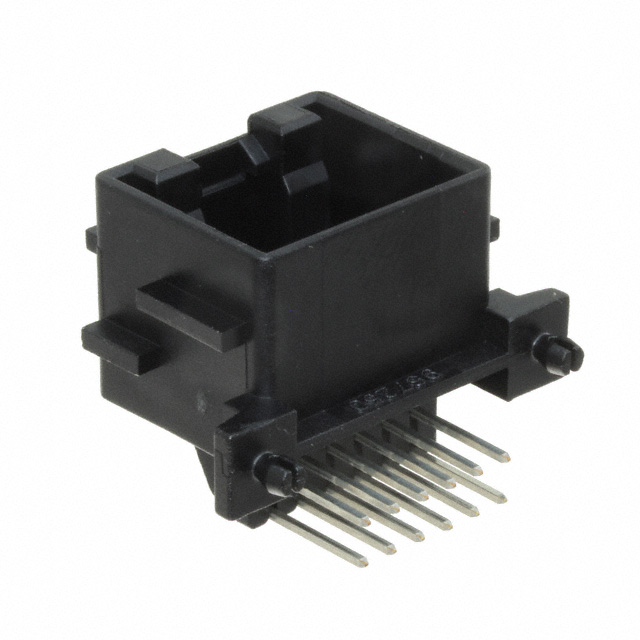

1-967250-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-967250-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-967250-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-967250-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | MOD2 STIFTWANNE2X6P-TRAY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 270 pcs | ||
|---|---|---|---|---|---|
| $1.23 | $1.179 | $0.86 | |||
| 540 pcs | 1080 pcs | 5130 pcs | |||
| $0.835 | $0.713 | $0.639 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-967250-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | MOD2 STIFTWANNE2X6P-TRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47979 pcs | Data sheet | 967250 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Micro Quadlok |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 1-967250-1-ND A128331 |
Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.772" (19.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
