1-5645986-2

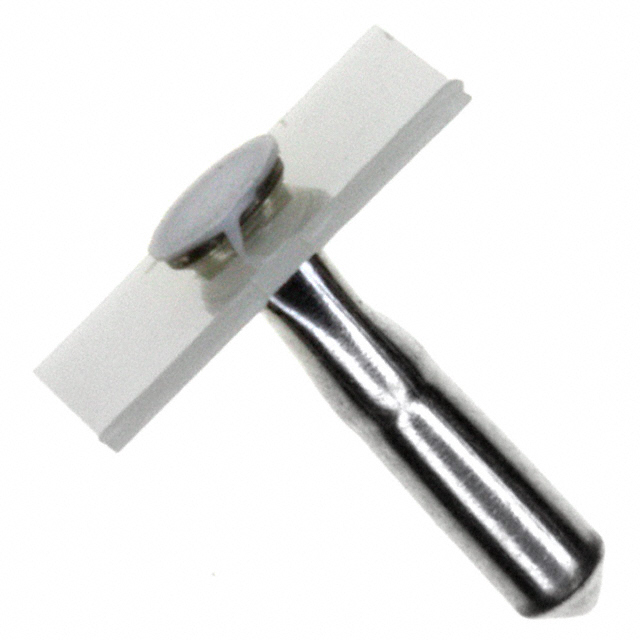

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-5645986-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-5645986-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-5645986-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PIN RCPT .028-.033 SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | 20000 pcs | 30000 pcs | ||
|---|---|---|---|---|---|
| $0.071 | $0.07 | $0.069 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-5645986-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PIN RCPT .028-.033 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 302061 pcs | Data sheet | 5645986 |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.148" ~ 0.260" (3.76mm ~ 6.60mm) | Series | 3 |
| Pin Hole Diameter | - | Packaging | Tape & Reel (TR) |
| Other Names | 156459862 A32899TR |
Operating Temperature | -65°C ~ 126°C |
| Mounting Hole Diameter | 0.062" (1.57mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Length - Overall | 0.290" (7.37mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.080" (2.03mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.028" ~ 0.033" (0.71mm ~ 0.84mm) No Tail Solder | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | 0.031" ~ 0.125" (0.79mm ~ 3.18mm) | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.028" ~ 0.033" (0.71mm ~ 0.84mm) |
