1-5645501-2

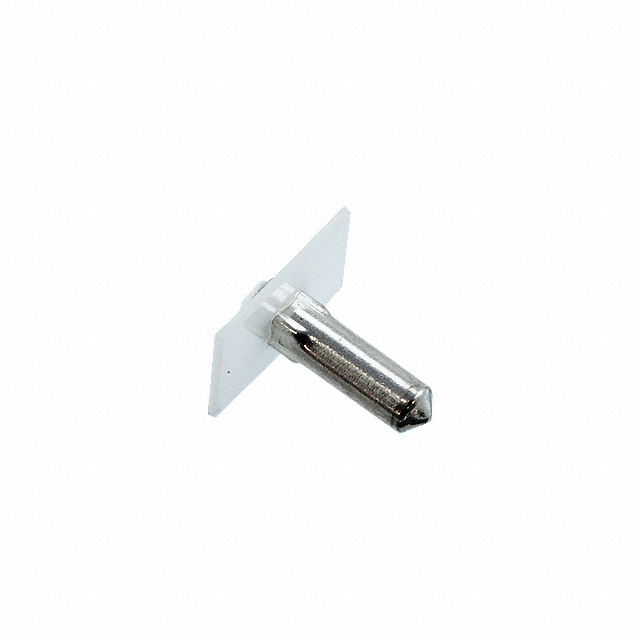

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-5645501-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-5645501-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-5645501-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PIN RCPT .037-.041 SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.173 | $0.164 | $0.14 | $0.119 | $0.114 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.103 | $0.098 | $0.082 | $0.075 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-5645501-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PIN RCPT .037-.041 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 265591 pcs | Data sheet | 5645501 Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.210" (5.33mm) | Series | 4 |
| Pin Hole Diameter | - | Packaging | Cut Tape (CT) |
| Other Names | A124418 A124418-ND A124418CT |
Operating Temperature | -65°C ~ 126°C |
| Mounting Hole Diameter | 0.069" (1.75mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Length - Overall | 0.260" (6.60mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.088" (2.24mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.037" ~ 0.041" (0.94mm ~ 1.04mm) No Tail Solder | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 100.0µin (2.54µm) | Contact Finish | Tin |
| Board Thickness | 0.031" ~ 0.125" (0.79mm ~ 3.18mm) | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.037" ~ 0.041" (0.94mm ~ 1.04mm) |
