Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > 1-292230-5

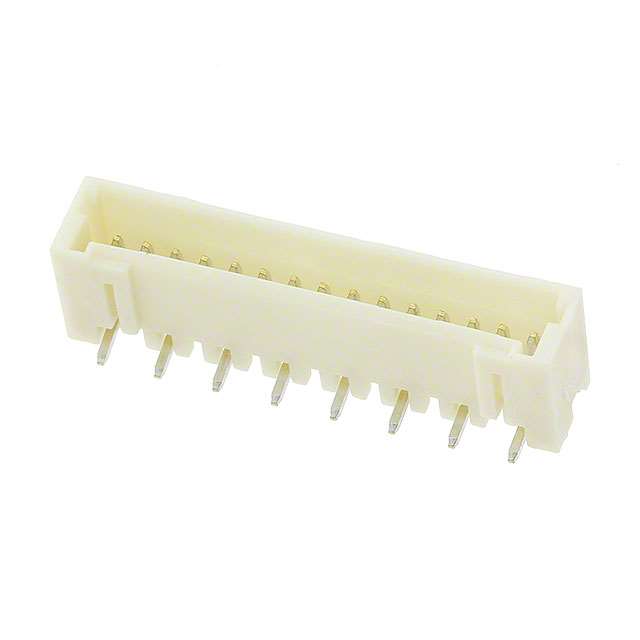

1-292230-5

1-292230-5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-292230-5 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 1-292230-5
Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 15POS VERT SMD TIN
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 64098 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs25 pcs
$0.502$0.441$0.415
50 pcs100 pcs250 pcs
$0.398$0.38$0.346

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.502

Product parameter

Part Number 1-292230-5 Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 15POS VERT SMD TIN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 64098 pcs Data sheet 292230 Drawing
Category Connectors, Interconnects Voltage Rating 50VAC
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series Mini CT
Row Spacing - Mating - Pitch - Mating 0.059" (1.50mm)
Packaging Cut Tape (CT) Overall Contact Length -
Other Names A98720CT Operating Temperature -30°C ~ 105°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 15 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 12 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA), Nylon, Glass Filled
Insulation Height 0.272" (6.91mm) Insulation Color Beige
Ingress Protection - Features Board Guide
Fastening Type Detent Lock Detailed Description Connector Header Surface Mount 15 position 0.059" (1.50mm)
Current Rating Varies by Wire Gauge Contact Type Male Pin
Contact Shape Square Contact Material Brass
Contact Length - Post - Contact Length - Mating 0.094" (2.40mm)
Contact Finish Thickness - Post - Contact Finish Thickness - Mating -
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications General Purpose
