Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > 1-292228-8

1-292228-8

1-292228-8

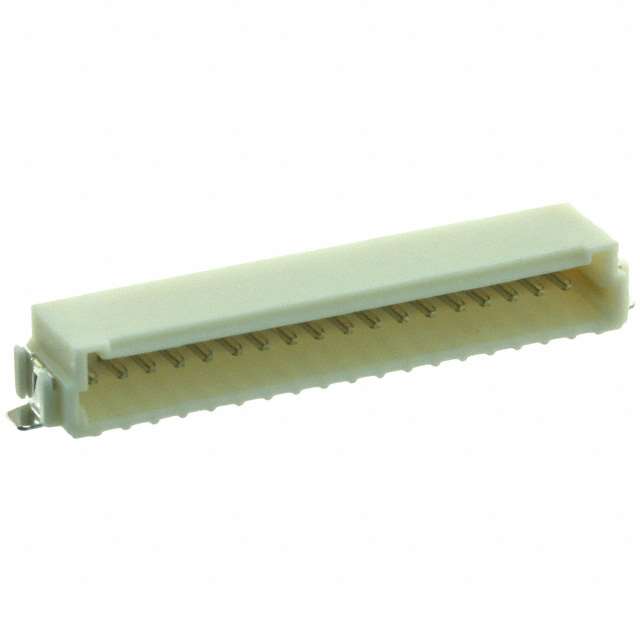

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-292228-8 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 1-292228-8
Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 18POS R/A SMD TIN
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 150631 pcs
Reference Price
(In US Dollars)		700 pcs1400 pcs2100 pcs
$0.218$0.194$0.182
3500 pcs4900 pcs17500 pcs
$0.176$0.17$0.157

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.218

Product parameter

Part Number 1-292228-8 Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 18POS R/A SMD TIN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 150631 pcs Data sheet 292228 Drawing
Category Connectors, Interconnects Voltage Rating 50VAC
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series Mini CT
Row Spacing - Mating - Pitch - Mating 0.059" (1.50mm)
Packaging Tape & Reel (TR) Overall Contact Length -
Other Names 1-292228-8-ND
12922288
A101023TR		 Operating Temperature -30°C ~ 105°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 18 Mounting Type Surface Mount, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 13 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Insulation Height 0.193" (4.90mm) Insulation Color Beige
Ingress Protection - Features Solder Retention
Fastening Type Detent Lock Detailed Description Connector Header Surface Mount, Right Angle 18 position 0.059" (1.50mm)
Current Rating Varies by Wire Gauge Contact Type Male Pin
Contact Shape Square Contact Material Brass
Contact Length - Post - Contact Length - Mating 0.094" (2.40mm)
Contact Finish Thickness - Post - Contact Finish Thickness - Mating -
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications General Purpose
