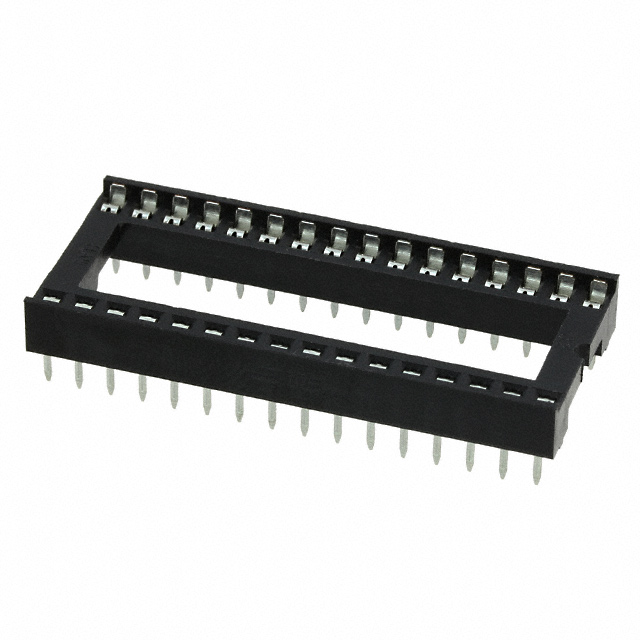

1-2199300-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-2199300-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-2199300-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-2199300-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN IC DIP SOCKET 32POS TINLEAD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.273 | $0.24 | $0.226 | $0.217 | $0.207 | |
| 250 pcs | 500 pcs | 1500 pcs | 3000 pcs | ||
| $0.188 | $0.17 | $0.141 | $0.137 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-2199300-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 32POS TINLEAD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 156936 pcs | Data sheet | 2199300 Drawing |
| Category | Connectors, Interconnects | Type | DIP, 0.6" (15.24mm) Row Spacing |
| Termination Post Length | 3.000" (76.20mm) | Termination | Solder |
| Series | Diplomate DL | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | A120356 | Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 32 (2 x 16) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 21 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyester | Features | Open Frame, No Center Bar |
| Current Rating | 1A | Contact Resistance | 20 mOhm |
| Contact Material - Post | Brass, Copper | Contact Material - Mating | Phosphor Bronze |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Tin-Lead |
