1-1586040-0

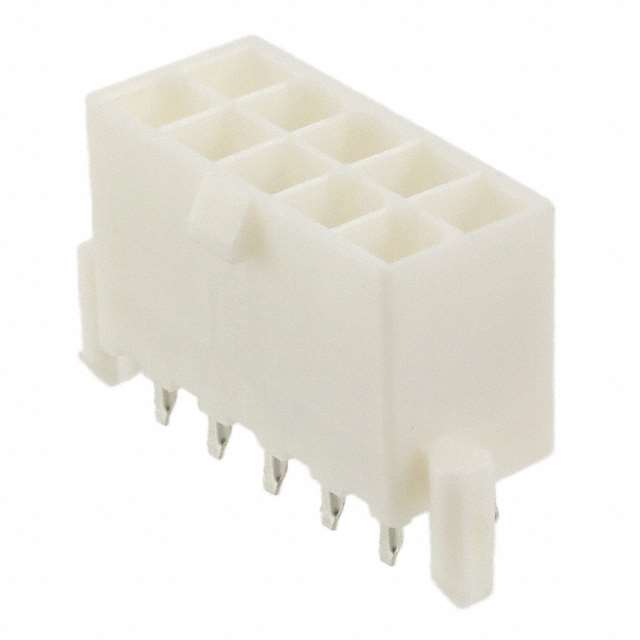

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1586040-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1586040-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1586040-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PIN HEADER 10POS DUAL VERT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 210 pcs | 630 pcs | |
|---|---|---|---|---|---|
| $0.287 | $0.251 | $0.217 | $0.177 | ||
| 1050 pcs | 5040 pcs | 10080 pcs | |||
| $0.157 | $0.138 | $0.131 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1586040-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PIN HEADER 10POS DUAL VERT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 170247 pcs | Data sheet | 1586040 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | VAL-U-LOK |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 1-1586040-0-ND A114797 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 25 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.504" (12.80mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 10 position 0.165" (4.20mm) |
| Current Rating | 9A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass Alloy |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 80.0µin (2.03µm) | Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Lighting |
