Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > 1-1586038-4

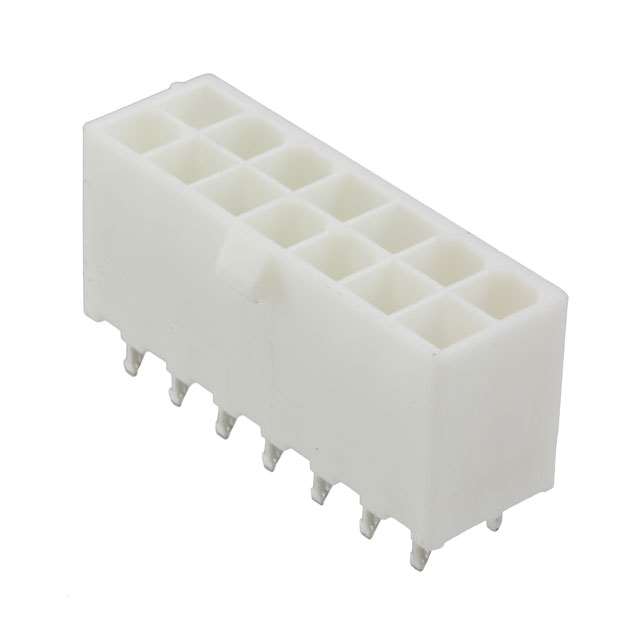

1-1586038-4

1-1586038-4
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1586038-4 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 1-1586038-4
Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 14POS VERT DUAL TIN
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 108503 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs195 pcs585 pcs
$0.481$0.424$0.366$0.299
1170 pcs5070 pcs10140 pcs
$0.266$0.233$0.221

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.481

Product parameter

Part Number 1-1586038-4 Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 14POS VERT DUAL TIN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 108503 pcs Data sheet 1586038 Drawing
Category Connectors, Interconnects Voltage Rating 600VAC
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series VAL-U-LOK
Row Spacing - Mating 0.165" (4.20mm) Pitch - Mating 0.165" (4.20mm)
Packaging Tray Overall Contact Length -
Other Names 1-1586038-4-ND
A114794		 Operating Temperature -40°C ~ 105°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 14 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 25 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA), Nylon
Insulation Height 0.504" (12.80mm) Insulation Color Natural
Ingress Protection - Features -
Fastening Type Locking Ramp Detailed Description Connector Header Through Hole 14 position 0.165" (4.20mm)
Current Rating 9A Contact Type Male Pin
Contact Shape Square Contact Material Brass Alloy
Contact Length - Post 0.138" (3.50mm) Contact Length - Mating -
Contact Finish Thickness - Post 80.0µin (2.03µm) Contact Finish Thickness - Mating 80.0µin (2.03µm)
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications General Purpose, Industrial, Lighting
