74099-0010

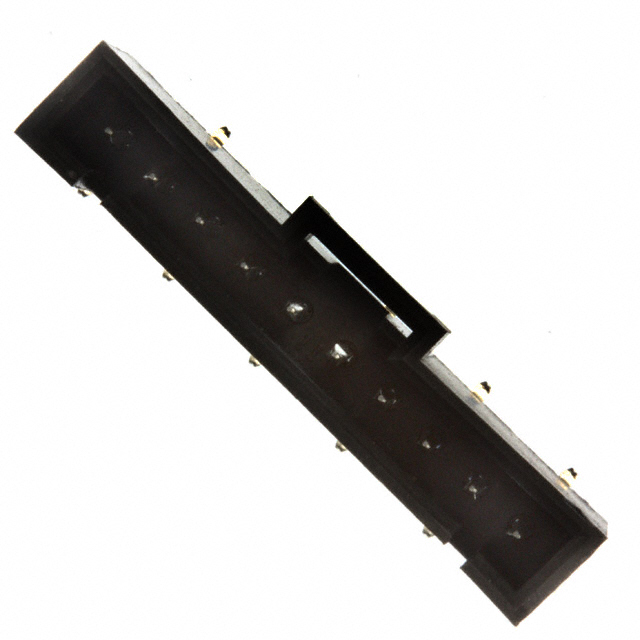

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 74099-0010 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 74099-0010 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 74099-0010 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER .100 VERT 10POS SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.61 | $0.554 | $0.475 | $0.396 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.339 | $0.301 | $0.294 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 74099-0010 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER .100 VERT 10POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71586 pcs | Data sheet | 74099-0010 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SL 74099 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 740990010 WM7220 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.450" (11.43mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount 10 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
