74099-0004

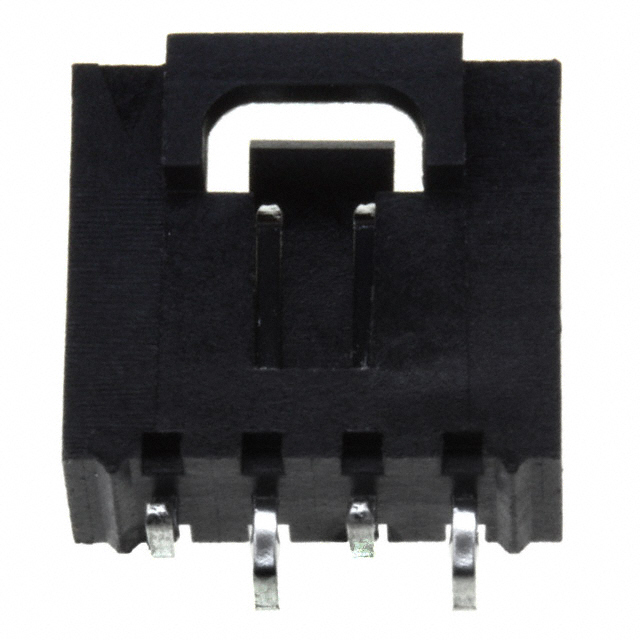

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 74099-0004 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 74099-0004 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 74099-0004 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER .100 VERT 4POS SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.486 | $0.441 | $0.378 | $0.315 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.27 | $0.239 | $0.234 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 74099-0004 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER .100 VERT 4POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 98391 pcs | Data sheet | 74099-0004 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SL 74099 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 0740990004 74099-0004-ND 740990004 Q1477618A WM7214 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.450" (11.43mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount 4 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
