502494-0370

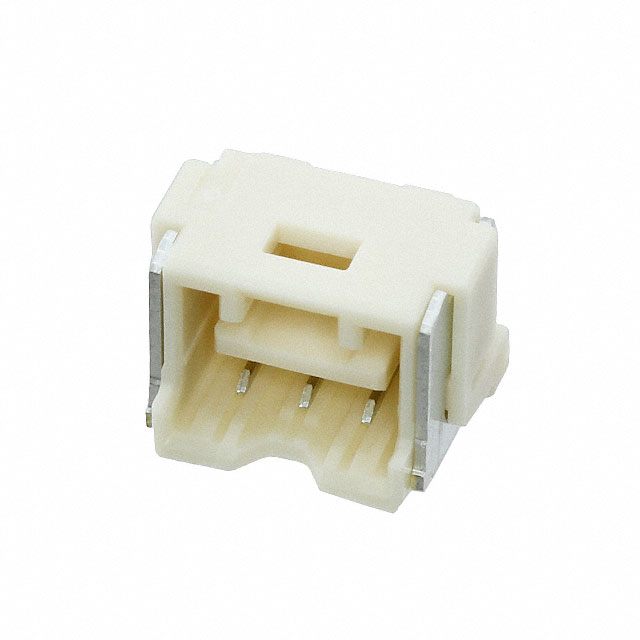

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 502494-0370 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 502494-0370 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 502494-0370 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 2.0 W/B SGL R/ARECASSY3CKTEMBSTP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.20 | $0.188 | $0.169 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.15 | $0.144 | $0.132 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 502494-0370 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 2.0 W/B SGL R/ARECASSY3CKTEMBSTP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 177121 pcs | Data sheet | CLIK-Mate™ Datasheet2.0mm PITCH W/B CONN. SINGLE Series User Manual2.0mm PITCH W/B CONN. SINGLE Series Application Sp5024940370 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | CLIK-Mate 502494 | Row Spacing - Mating | - |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Cut Tape (CT) |
| Other Names | WM15811CT | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount, Right Angle |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Resin | Insulation Height | 0.270" (6.86mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Pick and Place, Solder Retention | Fastening Type | Latch Holder |
| Detailed Description | 3 Position Receptacle Connector 0.079" (2.00mm) Surface Mount, Right Angle Tin | Current Rating | - |
| Contact Type | Forked | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
