502494-0270

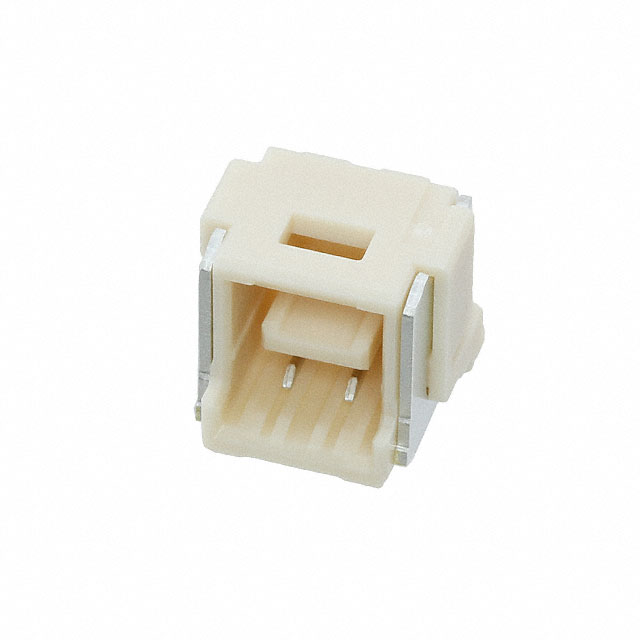

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 502494-0270 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 502494-0270 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 502494-0270 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 2.0 W/B SGL R/ARECASSY2CKTEMBSTP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 950 pcs | 1900 pcs | 2850 pcs | 6650 pcs | |
|---|---|---|---|---|---|
| $0.095 | $0.085 | $0.079 | $0.077 | ||
| 9500 pcs | 23750 pcs | 47500 pcs | |||
| $0.071 | $0.07 | $0.069 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 502494-0270 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 2.0 W/B SGL R/ARECASSY2CKTEMBSTP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 328063 pcs | Data sheet | CLIK-Mate™ Datasheet2.0mm PITCH W/B CONN. SINGLE Series User Manual2.0mm PITCH W/B CONN. SINGLE Series Application Sp5024940270 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | CLIK-Mate 502494 | Row Spacing - Mating | - |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tape & Reel (TR) |
| Other Names | 5024940270 WM15810TR |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Surface Mount, Right Angle |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Resin | Insulation Height | 0.270" (6.86mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Pick and Place, Solder Retention | Fastening Type | Latch Holder |
| Detailed Description | 2 Position Receptacle Connector 0.079" (2.00mm) Surface Mount, Right Angle Tin | Current Rating | - |
| Contact Type | Forked | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
