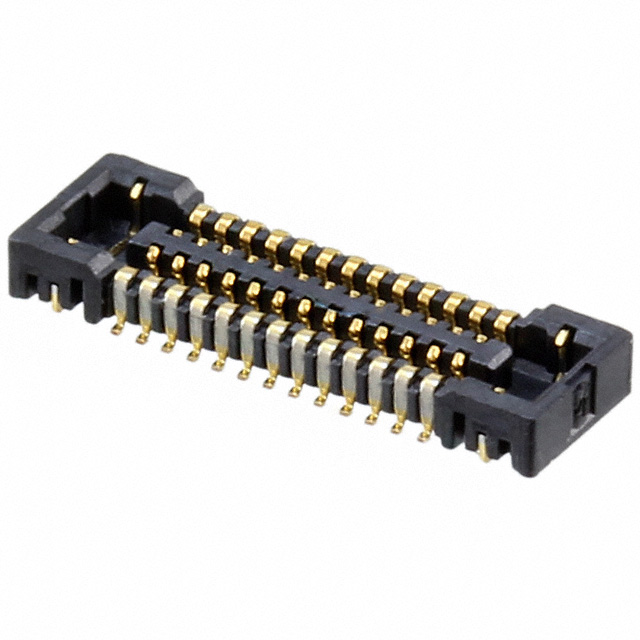

502426-2630
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 502426-2630 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 502426-2630 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 502426-2630 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN 0.4MM BTB RCPT 26POS SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 750 pcs | 1500 pcs | 3750 pcs | 5250 pcs | |
|---|---|---|---|---|---|
| $0.378 | $0.322 | $0.311 | $0.295 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 502426-2630 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN 0.4MM BTB RCPT 26POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70443 pcs | Data sheet | 502426,30 Spec Sheet502426 Series Drawing |
| Category | Connectors, Interconnects | Series | SlimStack 502426 |
| Pitch | 0.016" (0.40mm) | Packaging | Tape & Reel (TR) |
| Other Names | 502426-2630-TR750 5024262630 WM9056TR |
Number of Rows | 2 |
| Number of Positions | 26 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 1mm |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.039" (1.00mm) | Features | Solder Retention |
| Detailed Description | 26 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Center Strip Contacts |
