502403B00000

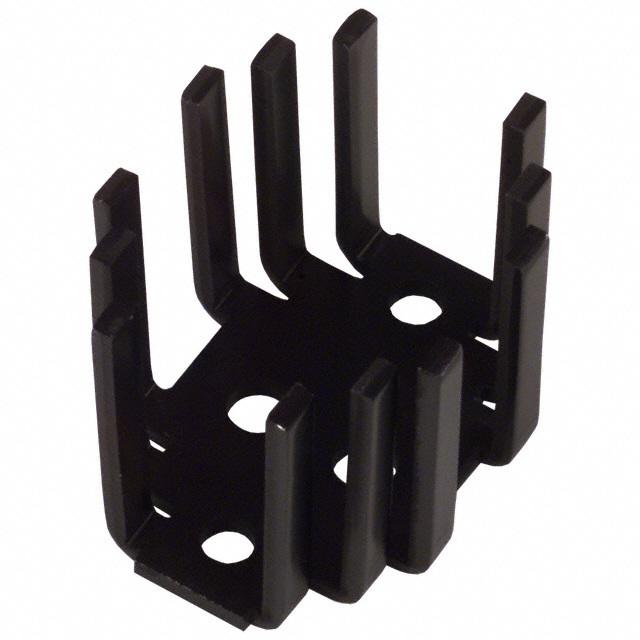

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 502403B00000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 502403B00000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 502403B00000 |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEAT SINK 12W 1.25"H SPACE SAVER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.257 | $1.225 | $1.192 | $1.126 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.06 | $0.994 | $0.96 | $0.861 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 502403B00000 | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEAT SINK 12W 1.25"H SPACE SAVER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39017 pcs | Data sheet | Standard Heatsinks Catalog |
| Category | Fans, Thermal Management | Width | 1.290" (32.77mm) |
| Type | Board Level | Thermal Resistance @ Natural | - |
| Thermal Resistance @ Forced Air Flow | - | Shape | Rhombus |
| Series | - | Power Dissipation @ Temperature Rise | - |
| Package Cooled | - | Other Names | 001224 5024B HS142 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.630" (41.40mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 1.250" (31.75mm) | Diameter | - |
| Detailed Description | Heat Sink Aluminum Board Level | Attachment Method | Bolt On |
