5020781710

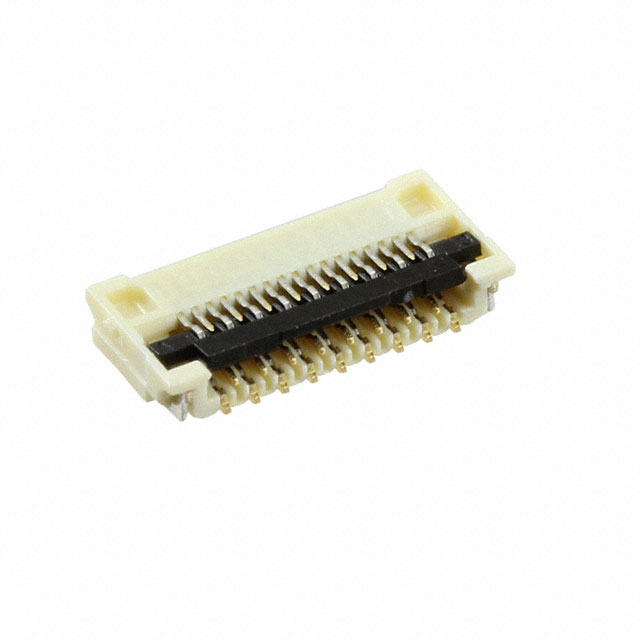

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5020781710 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5020781710 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5020781710 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC BOTTOM 17POS 0.25MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 9000 pcs | ||
|---|---|---|---|---|---|
| $0.35 | $0.332 | $0.325 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5020781710 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC BOTTOM 17POS 0.25MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63849 pcs | Data sheet | 5020781710 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 502078 |
| Pitch | 0.010" (0.25mm) | Packaging | Tape & Reel (TR) |
| Other Names | 502078-1710 5020781710-ND WM14446TR |
Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 17 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0, UL94 HB | Manufacturer Standard Lead Time | 12 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Plastic, Glass Filled | Housing Color | Beige |
| Height Above Board | 0.039" (1.00mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 17 Position FPC Connector Contacts, Bottom 0.010" (0.25mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Plastic, Glass Filled |
| Actuator Color | Black |
