5020781360

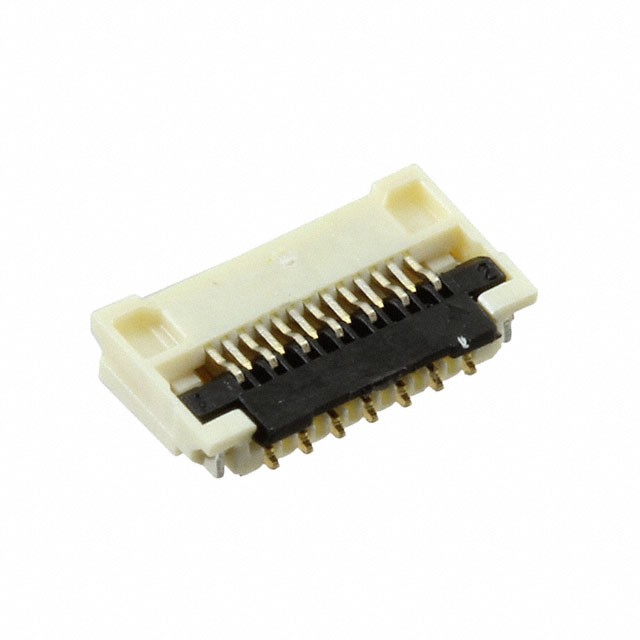

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5020781360 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5020781360 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5020781360 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC BOTTOM 13POS 0.25MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.528 | $0.48 | $0.451 | $0.431 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.412 | $0.373 | $0.343 | $0.294 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5020781360 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC BOTTOM 13POS 0.25MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80573 pcs | Data sheet | 50207813605020781360 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 502078 |
| Pitch | 0.010" (0.25mm) | Packaging | Cut Tape (CT) |
| Other Names | WM14414CT | Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 13 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0, UL94 HB | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | Beige |
| Height Above Board | 0.039" (1.00mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 13 Position FPC Connector Contacts, Bottom 0.010" (0.25mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Polyamide (PA), Nylon |
| Actuator Color | Black |
