501912-3790

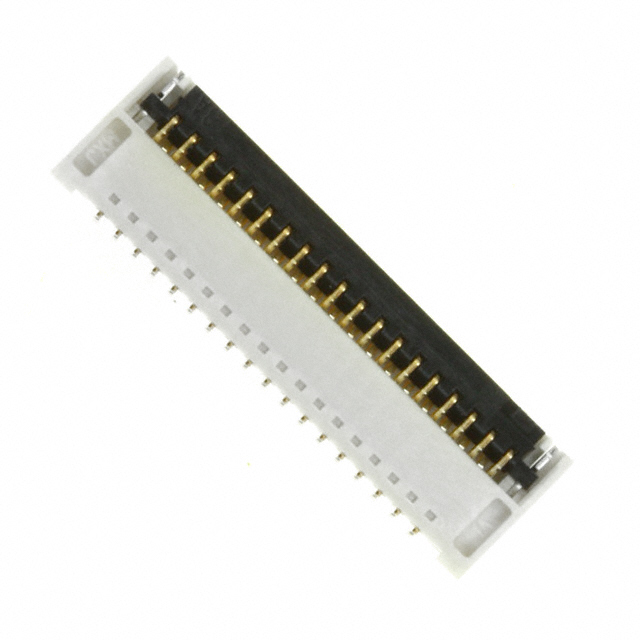

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 501912-3790 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 501912-3790 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 501912-3790 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC BOTTOM 37POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 750 pcs | 1500 pcs | 3750 pcs | 5250 pcs | |
|---|---|---|---|---|---|
| $0.435 | $0.371 | $0.358 | $0.341 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 501912-3790 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC BOTTOM 37POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65237 pcs | Data sheet | 501912-3790 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 501912 |
| Pitch | 0.012" (0.30mm) | Packaging | Tape & Reel (TR) |
| Other Names | 0501912-3790 0501912-3790-C 05019123790 05019123790-C 501912-3710 501912-3790-C 501912-3790-ND 501912-3790-TR750 5019123790 5019123790-C WM2216 WM2216TR |
Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 37 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polymer, Glass Filled | Housing Color | - |
| Height Above Board | - | Flat Flex Type | FPC |
| Features | Solder Retention | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 37 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Polymer, Glass Filled |
| Actuator Color | - |
